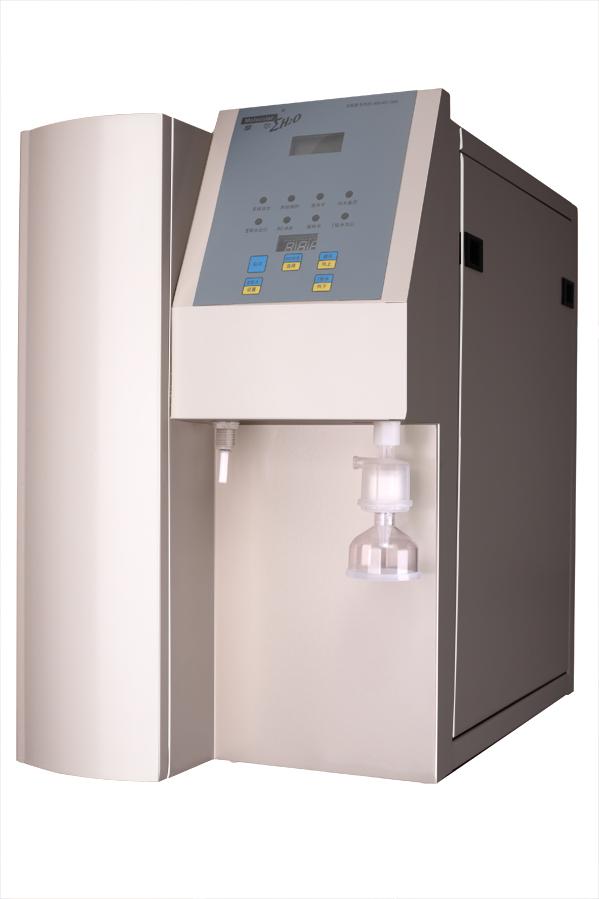

Molecular™ Molelement Series System
Molelement at a glance
The Molecular™ Molelement system is a cost effective means of producing analytical grade water. Pretreatment, reverse osmosis module, deionization cartridge, storge tank, UV sterilizer are all integrated into one system. Various system options are available to fulfill your lab needs. Components of the system free of charge for one year warranty (consumables except).
Options available for the Molelement
- Touch keyboard control, self-test, water shortage protection alarm, power-off protection;
- Built-in RO membrane fouling prevention program, RO membrane cleaning manual button;
- IC microcomputer intelligent control, built-in automatic cycle timing of ultra pure water to maintain the water quality of ultra pure water;
- Water resistance on-line monitoring;
- Upgrade function for the quality and quantity of outlet water.
- Easy to clean, disinfect and drain off the waste water;
- Digital display the time of regular intake or the water pressure.
Applications
- Sample pretreatment. e.g.: reagents preparation, laboratory washing and tissue cleaning.
- Conventional physical and chemical analysis experiment. e.g.: Toxicity test,quantitative analysis of trace element, buffer solution.
- HPLC/LC-MS organic analysis.
- IC/ICP-MS element analysis.
Technical specification
|
Model |
Molelement 810s |
Molelement 810d |
|
Process |
Single pass ro system |
Double pass ro system |
|
Output of pure water |
≥ 5L/H |
≥ 5L/H |
|
Output of ultrapure water |
≥ 0.6L/min |
≥ 0.6L/min |
|
Resistivity at 25℃ |
16-18.25MΩ.cm |
16-18.25MΩ.cm |
|
Conductivity at 25℃ |
≤ 10μs/cm |
≤ 5μs/cm |
|
TOC |
< 10ppb |
< 10ppb |
|
Pyrogens |
< 0.01EU/ml |
< 0.01EU/ml |
|
Microorganism |
< 1cfu/ml |
< 1cfu/ml |
|
Bacteria |
< 1cfu/ml |
< 1cfu/ml |
|
Particles (> 0.22µm) |
< 1/ml |
< 1/ml |
|
Absorbance(254nm,1cm optical distance) |
≤ 0.001 |
≤ 0.001 |
|
Reactive Silica(SiO2) |
< 0.01ppm |
< 0.01ppm |
|
Heavy metal |
< 0.01ppm |
< 0.01ppm |
|
Electrical requirements |
220V/50HZ (or customer oriented) |
220V/50HZ (or customer oriented) |
|
Power |
≥ 100W |
≥ 150W |
|
Dimension: L/W/H |
340* 550* 530mm |
340* 550* 530mm |
|
Weight |
≥32KG |
≥41KG |
